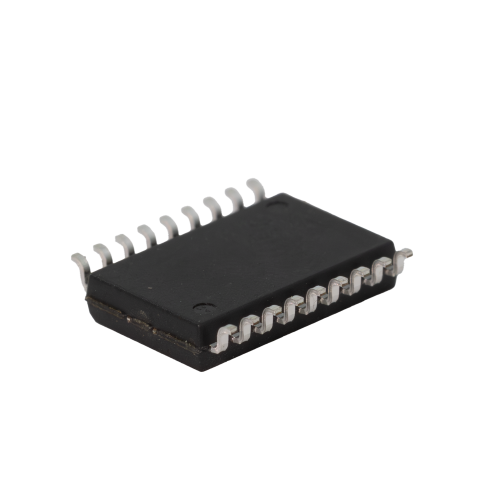

MT8870DSR1 IC RECEIVER DTMF 18SOIC

Datasheet

The MT8870DSR1 is a complete DTMF (Dual Tone Multi Frequency) receiver that integrates both band-split filter and digital decoder functionalities into a compact 18-SOIC package.

Its filtering section employs switched-capacitor techniques to separate high and low tone groups, while the decoder uses digital counting methods to detect and decode all 16 standard DTMF tone-pairs into a 4-bit output code.

Designed for central office-grade applications, the MT8870DSR1 also offers low power consumption, programmable guard time, and compatibility with legacy versions – making it ideal for use in modern telecom and remote control systems.

Features

• Complete DTMF receiver

• Low power consumption

• Internal gain-setting amplifier

• Adjustable guard time

• Central office quality performance

• Power-down mode for energy efficiency

• Inhibit mode for decoder control

• Backward compatible with MT8870C/MT8870C-1

Applications

• Receiver systems compliant with British Telecom (BT) or CEPT specs (MT8870D-1)

• Paging systems

• Repeater systems / mobile radio

• Credit card systems

• Remote control solutions

• Personal computers

• Telephone answering machines
